1A 40V 1N5819 1N5822 Schottky Barrier Rectifier Diode SB360 SB560 SR360 Schottky Diode

Name: 1A 40V 1N5819 1N5822 Schottky Barrier Rectifier Diode SB360 SB560 SR360 Schottky Diode
Brand: trusTec
Price: 1 USD

China 1A 40V 1N5819 1N5822 Schottky Barrier Rectifier Diode SB360 SB560 SR360 Schottky Diode wholesale

Brand Name : trusTec

Model Number : 1N5819

Certification : ROHS

Place of Origin : China

MOQ : 5K PCS

Price : Negotiable (EXW/FOB/CNF)

Payment Terms : T/T

Supply Ability : 800KK PCS per month

Delivery Time : 10 work days fresh products

Packaging Details : 5K PCS per tape & box, 50K PCS per carton.

Type : Schottky Diode

Package type : Through Hole

Max. reverse voltage : 40V

Max. forward voltage : 0.6V

Max. forward current : 1A

Max. reverse current : 0.5mA

Package : DO-41

Working temperature : -65°C ~ 125°C

Contact Now

Axial Schottky Barrier Rectifier Diode 1N5819 1N5822 SR160 SR260 SR360 SR560 SB160 SB260 SB360 SB560

Type	Current	Package
1S20 THRU 1S100	1	R-1
1N5817 THRU 1N5819	1	DO-41
1N5820 THRU 1N5822	3	DO-27
SB120 THRU SB1200	1	DO-41
SR120 THRU SR2200	1	DO-41
SB220 THRU SB2200	2	DO-15
SR220 THRU SR2200	2	DO-15
SB320 THRU SB3200	3	DO-27
SR320 THRU SR3200	3	DO-27
SB520 THRU SB5200	5	DO-27
SR520 THRU SR5200	5	DO-27

1N5817 THRU 1N5819

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 40 Volts Forward Current - 1.0 Ampere

Dimension

1A 40V 1N5819 1N5822 Schottky Barrier Rectifier Diode SB360 SB560 SR360 Schottky Diode

Product Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Guardring for overvoltage protection

Low power loss,high efficiency

High current capability,low forward voltage drop

High surge capability

For use in low voltage,high frequency inverters, free wheeling,and polarity protection applications

High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

Mechanical Data

Case: JEDEC DO-41 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.012 ounce, 0.33 grams

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for current capacitive load derate by 20%.

	SYMBOLS	1N5817	1N5818	1N5819	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	VOLTS
Maximum RMS voltage	VRMS	14	21	28	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TL=90 ℃	I(AV)	1.0			Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	25.0			Amps
Maximum instantaneous forward voltage at 1.0A	VF	0.450	0.550	0.600	Volts
Maximum DC reverse current TA=25 ℃ at rated DC blocking voltage TA=100 ℃	IR	0.5 10.0			mA
Typical junction capacitance (NOTE 1)	CJ	110.0			pF
Typical thermal resistance (NOTE 2)	RθJA	50.0			℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +125			℃

Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

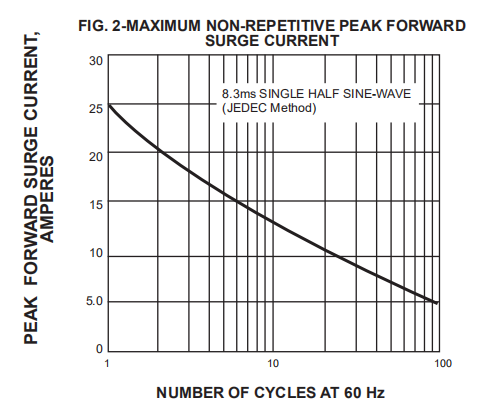

CHARACTERISTIC CURVES

1A 40V 1N5819 1N5822 Schottky Barrier Rectifier Diode SB360 SB560 SR360 Schottky Diode
